Current & Past In-House Projects
Jaguar Series 1.5 Cam Covers
Design Parameters;
- Interior features to match that of a Series 1 which included cam cover stud holes and clearance for cam caps.
- Exterior to be geometrically similar in height, fin size, fin depth, along with various radii/chamfers to Series 2.
- Jaguar logo to be placed in similar location on both passenger and drive side. Logo to be scaled appropriately to location.
- Oil fill moved to passenger side rear for ease of filling with forward opening bonnet along with safety hazard of previous location near exhaust manifold.
Series 1 Cam Cover
Series 2 Cam Cover
Series 1.5 Cam Cover

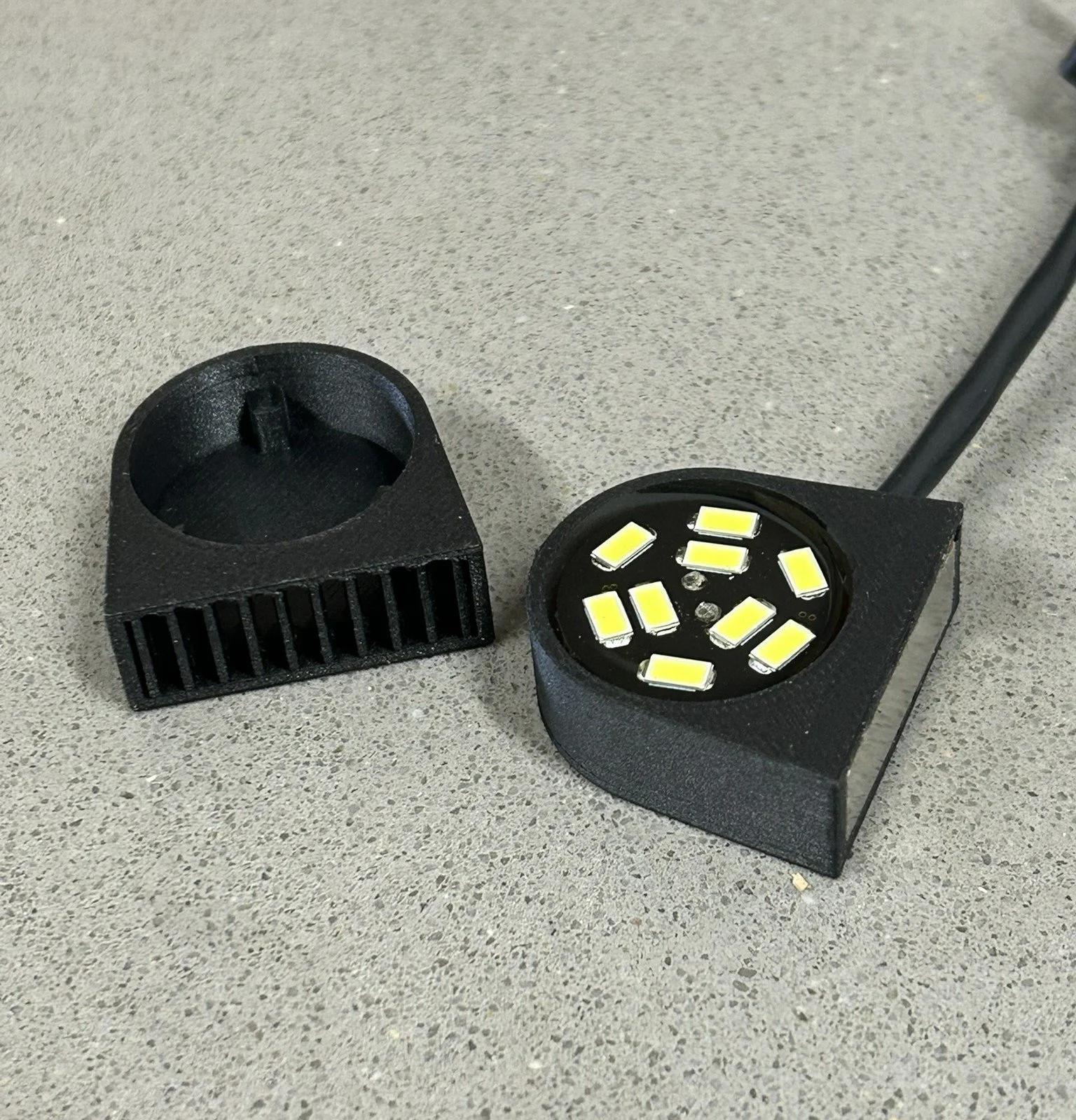

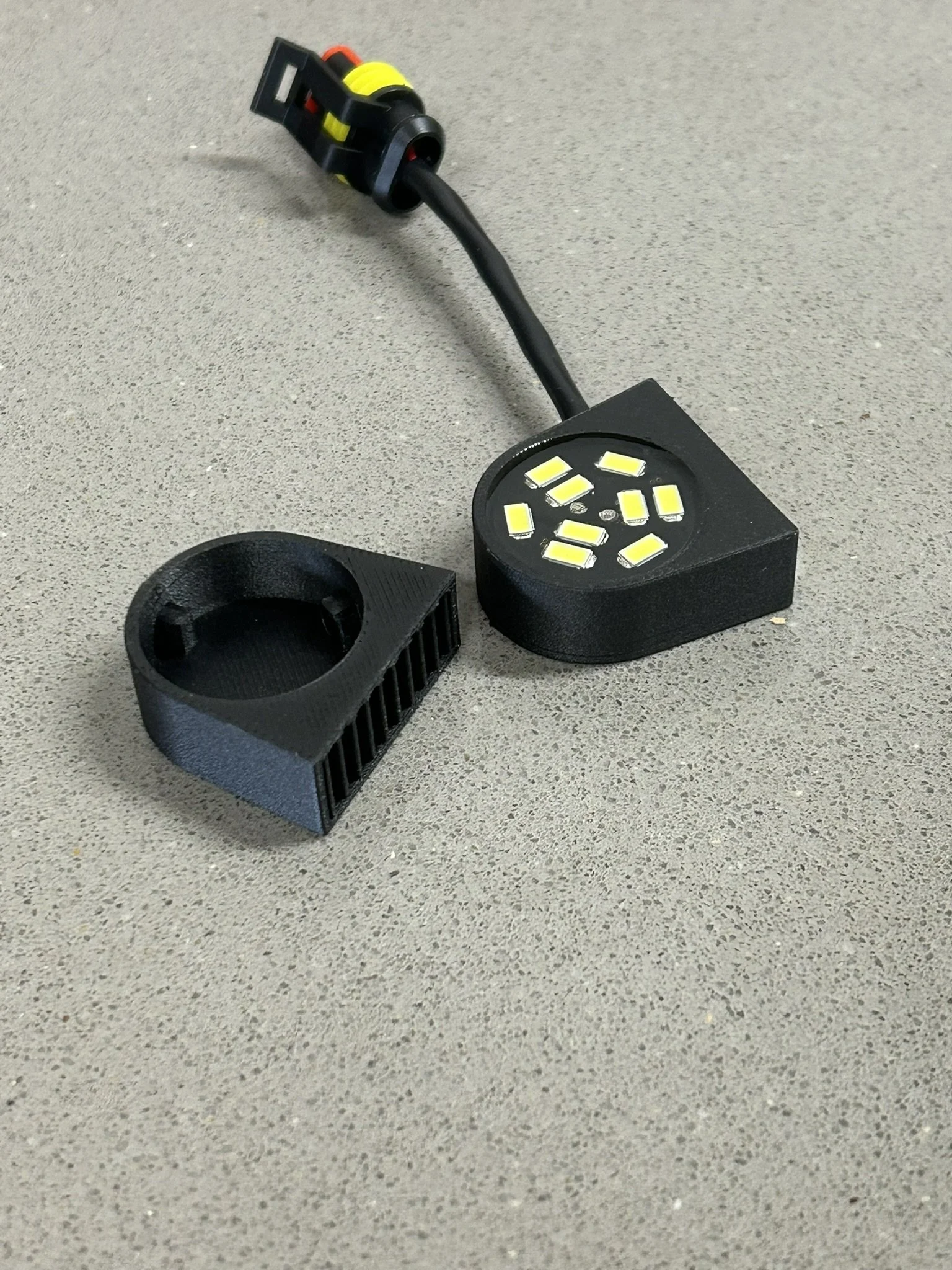

Vertical Mount Magnet Light
Design Parameters;
- Minimize cost.
- Fit standard rectangular magnet that will also be held in place via resin poured for board. (minimize assembly)
- Ensure printed supports are easily removable.
Designed and fabricated for our friends over at;

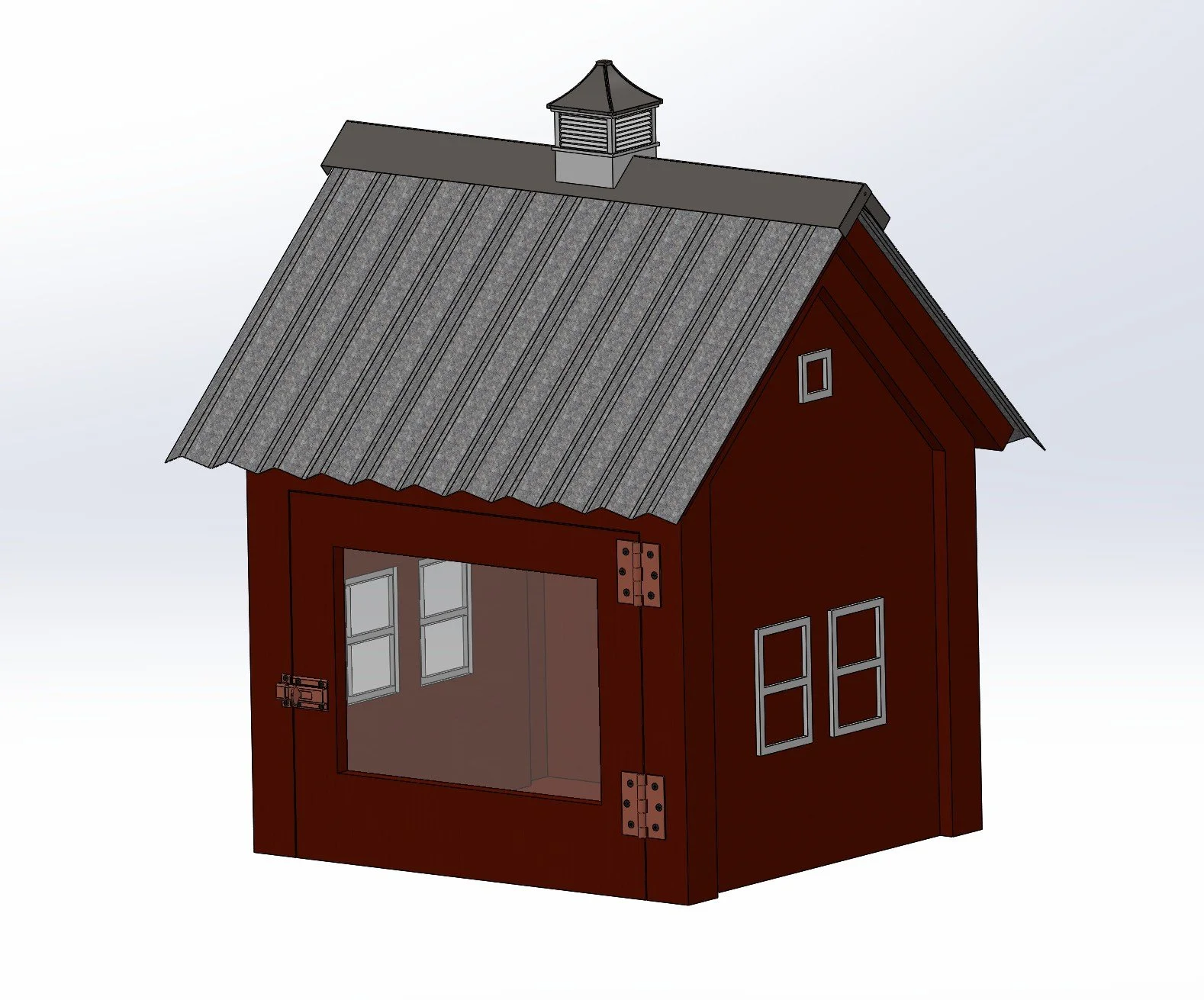

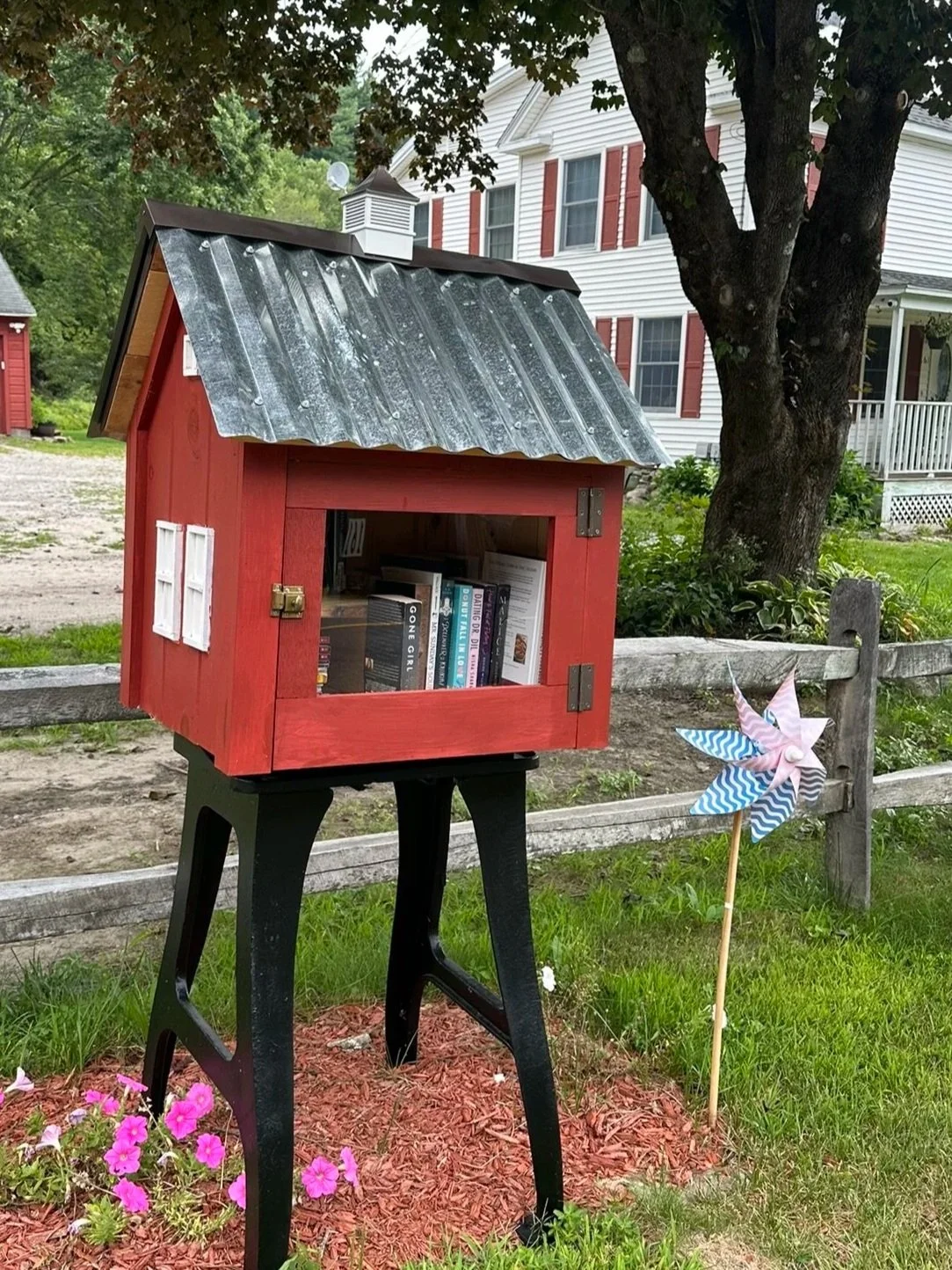

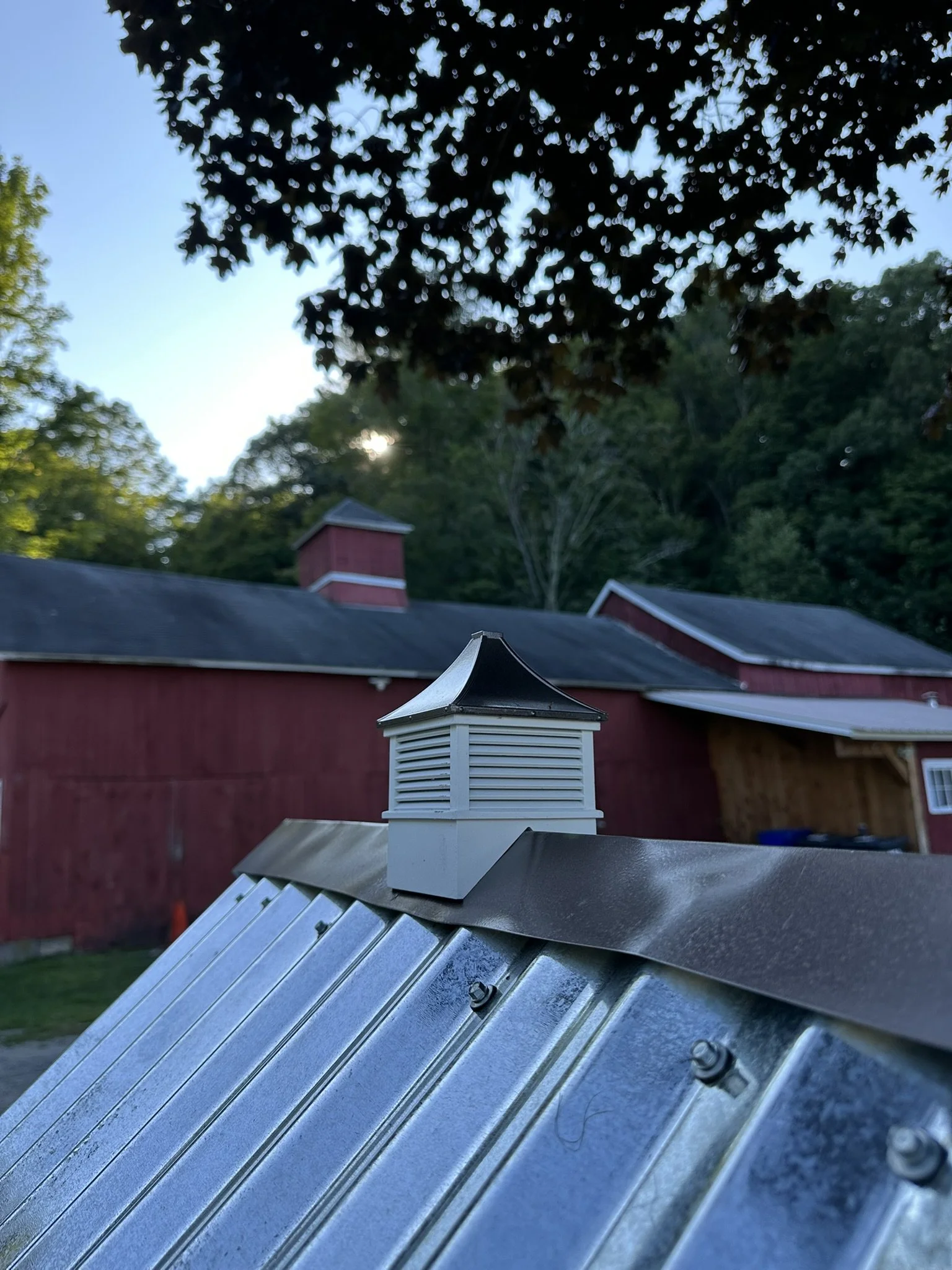

Cupola for local book barn
Design Parameters;
- Mimic cupola on existing cow barn with a twist on modern architecture .
- Designed for minimal required support to ensure print quality and success.
- Allow for adjustability once attached to roof ridge to ensure cupola is square to structure.
Designed and fabricated for our friends over at;
https://www.griffinshopeinc.com
